HVAC stands for Heating, Ventilation, and Air Conditioning.

There are several types of heating systems commonly used in the United States. Some of the most common types are:

1. Forced-air heating system: This is the most common type of heating system in the United States. It works by heating air in a furnace and then distributing the heated air through ducts throughout the house. The furnace can be powered by electricity or natural gas.

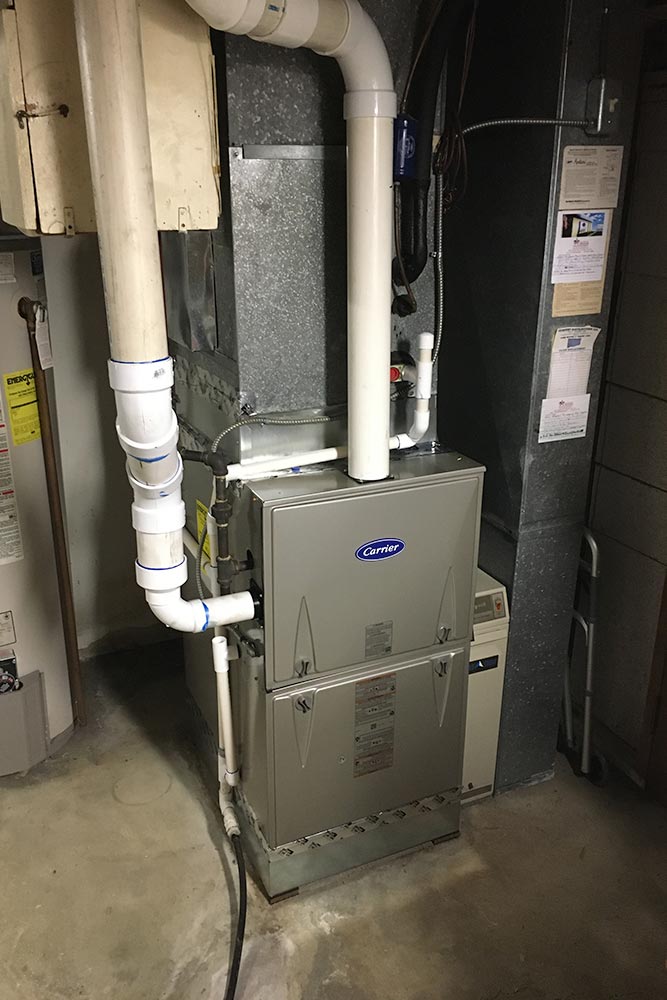

The basic components of a furnace include a burner, a heat exchanger, a blower fan, a duct system, and a thermostat.

The burner is the component that ignites the fuel, such as natural gas, and produces a flame. The heat exchanger is a set of metal tubes or plates that are heated by the flame produced by the burner. The hot air is then blown through the heat exchanger by the blower fan.

The blower fan is responsible for circulating the heated air through the duct system and into the rooms of the building. The duct system is a network of ducts that distribute the heated air to different areas of the building. The thermostat is a device that senses the temperature in the room and turns the furnace on and off as needed to maintain the desired temperature.

When the thermostat senses that the temperature in the room has fallen below the set point, it signals the furnace to turn on. The burner ignites, producing a flame that heats the heat exchanger. As air passes over the hot heat exchanger, it is warmed and blown by the blower fan into the duct system and distributed throughout the building.

Once the temperature in the room has reached the desired level, the thermostat signals the furnace to turn off. The burner stops producing a flame, and the blower fan stops blowing air through the heat exchanger.

2. Steam heating system: Steam heating systems use a boiler to heat water, which produces steam that is distributed through pipes to radiators throughout the house.

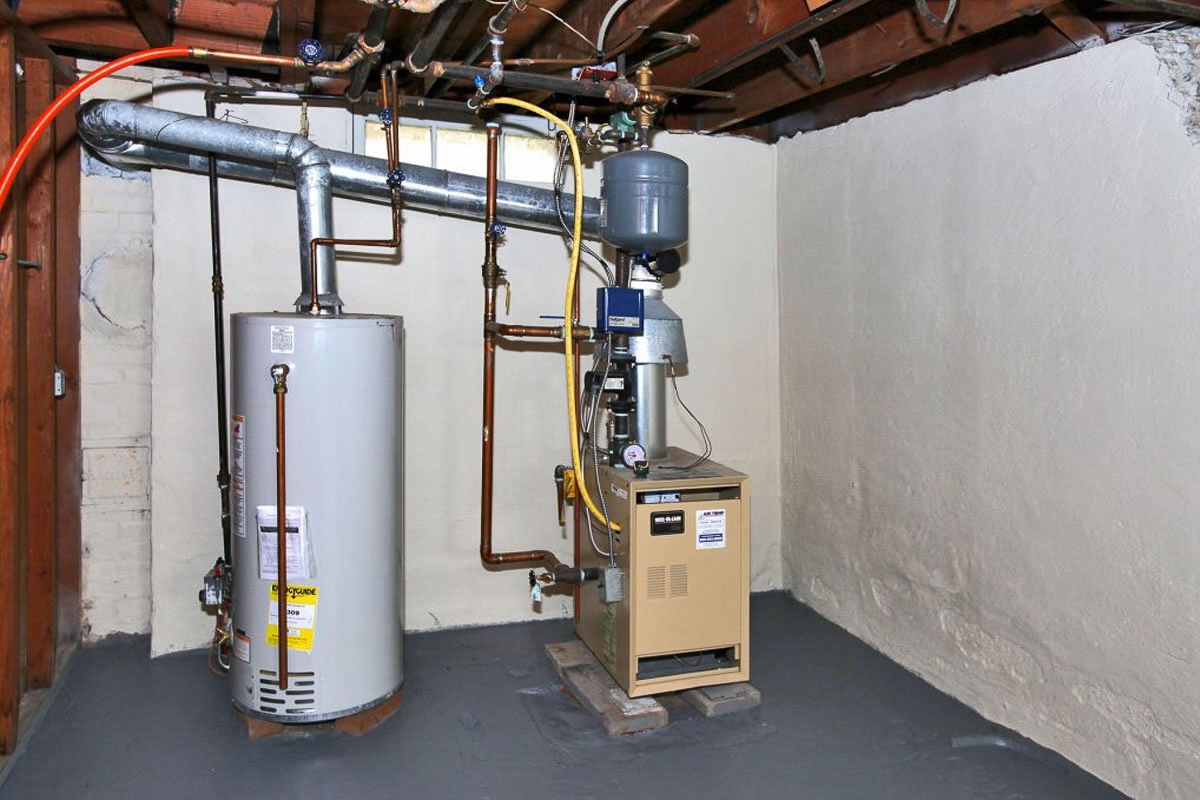

The basic components of a boiler include a fuel source, such as natural gas, oil, or biomass, a burner, a combustion chamber, a heat exchanger, a water or steam circulation system, and a control system.

The fuel is burned in the combustion chamber, creating a flame that heats the heat exchanger. The heat exchanger is a series of tubes or plates that come into contact with the hot gases produced by the burning fuel. As the hot gases flow over the heat exchanger, they transfer heat to the water or steam that is flowing through the tubes.

In a water circulation system, the heated water flows through pipes to radiators, baseboards, or other heat emitters, where the heat is released into the surrounding air. The cooler water then returns to the boiler to be heated again.

In a steam circulation system, the heated water is converted into steam, which is then transported through pipes to heat emitters, where it releases its heat into the surrounding air. The cooled steam then condenses back into water and returns to the boiler to be heated again.

The control system regulates the fuel and air supply to the burner to maintain the desired temperature and pressure in the system. It also includes safety devices, such as pressure relief valves and temperature sensors, to prevent overpressure and overheating.

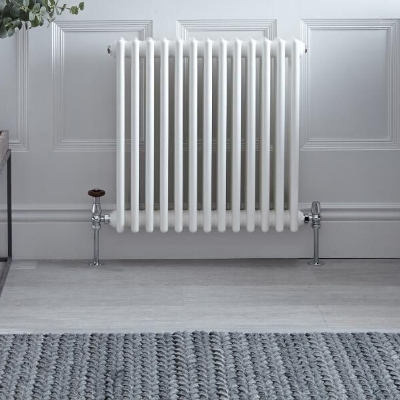

The basic components of a radiator include a metal casing, a series of tubes or pipes, and fins or plates attached to the tubes. The casing is usually made of cast iron or steel and is designed to hold the tubes in place.

Water or steam from a central heating system flows through the tubes, and the heat from the water or steam is transferred to the fins or plates attached to the tubes. The fins or plates increase the surface area of the radiator, which helps to distribute the heat more evenly.

As the hot water or steam passes through the tubes, it gives off heat, which is transferred to the metal fins or plates. The fins or plates then radiate the heat into the room through convection, warming the air around the radiator. The warm air rises and circulates, creating a convection current that helps to distribute the heat throughout the room.

The temperature of the radiator can be controlled by adjusting the flow of hot water or steam from the central heating system. When the temperature in the room reaches the desired level, a thermostat can be used to turn off the flow of hot water or steam to the radiator, thereby regulating the heat output.

3. Electric heating system: Electric heating systems use electricity to generate heat. They can be portable or installed as a central heating system.

Electric heaters work by using an electrical resistor or heating element that converts electrical energy into heat energy. When electricity flows through the heating element, it encounters resistance, which causes the element to become hot.

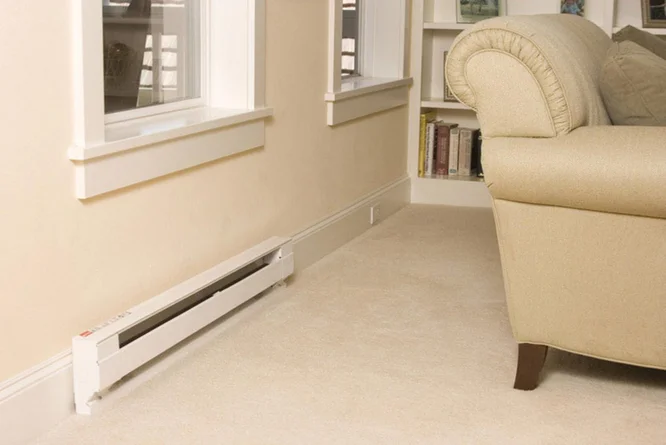

In a convection heater, the heating element is typically located inside a metal casing. As the element heats up, it warms the air around it. The warm air then rises and circulates throughout the room, creating a convection current that helps to distribute the heat.

In a radiant heater, the heating element is often exposed and emits infrared radiation that travels through the air and heats objects and people in its path. Radiant heaters are often used for spot heating or in rooms where rapid heating is required.

In a fan heater, the heating element is typically located behind a fan. As the element heats up, the fan blows air over the element, which in turn blows the warm air into the room.

Electric heaters can be controlled using a thermostat or a timer. The thermostat senses the temperature in the room and turns the heater on and off as needed to maintain the desired temperature. The timer can be used to turn the heater on and off at specific times, which can help to save energy and reduce heating costs.

There are several types of air conditioning systems commonly used in the United States. The most common types include:

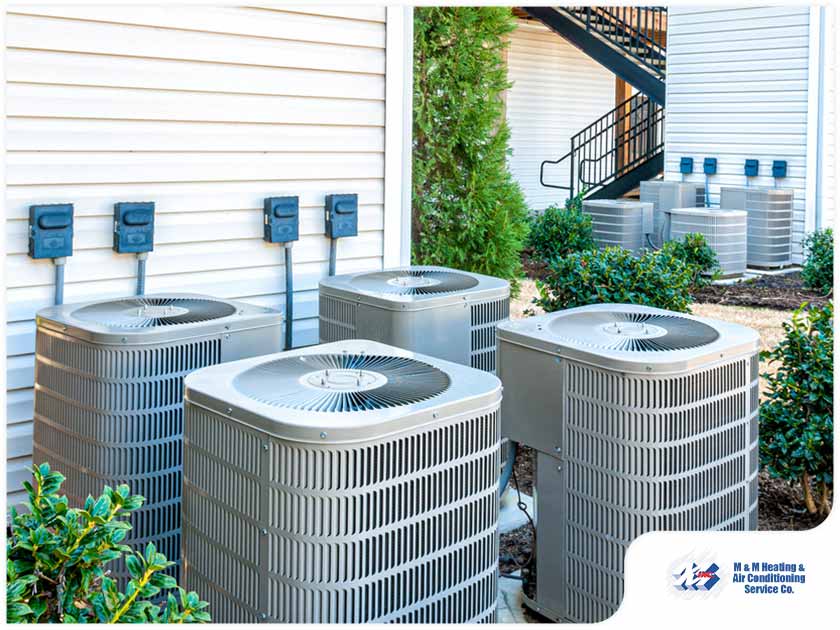

1. Central air conditioning systems: This type of system is designed to cool an entire home or building. It uses a centralized unit that distributes cool air through a system of ducts and vents. Central air conditioners typically consist of an outdoor unit that houses the compressor and condenser, and an indoor unit that houses the evaporator coil and air handler. They are often the most effective and efficient way to cool a large space.

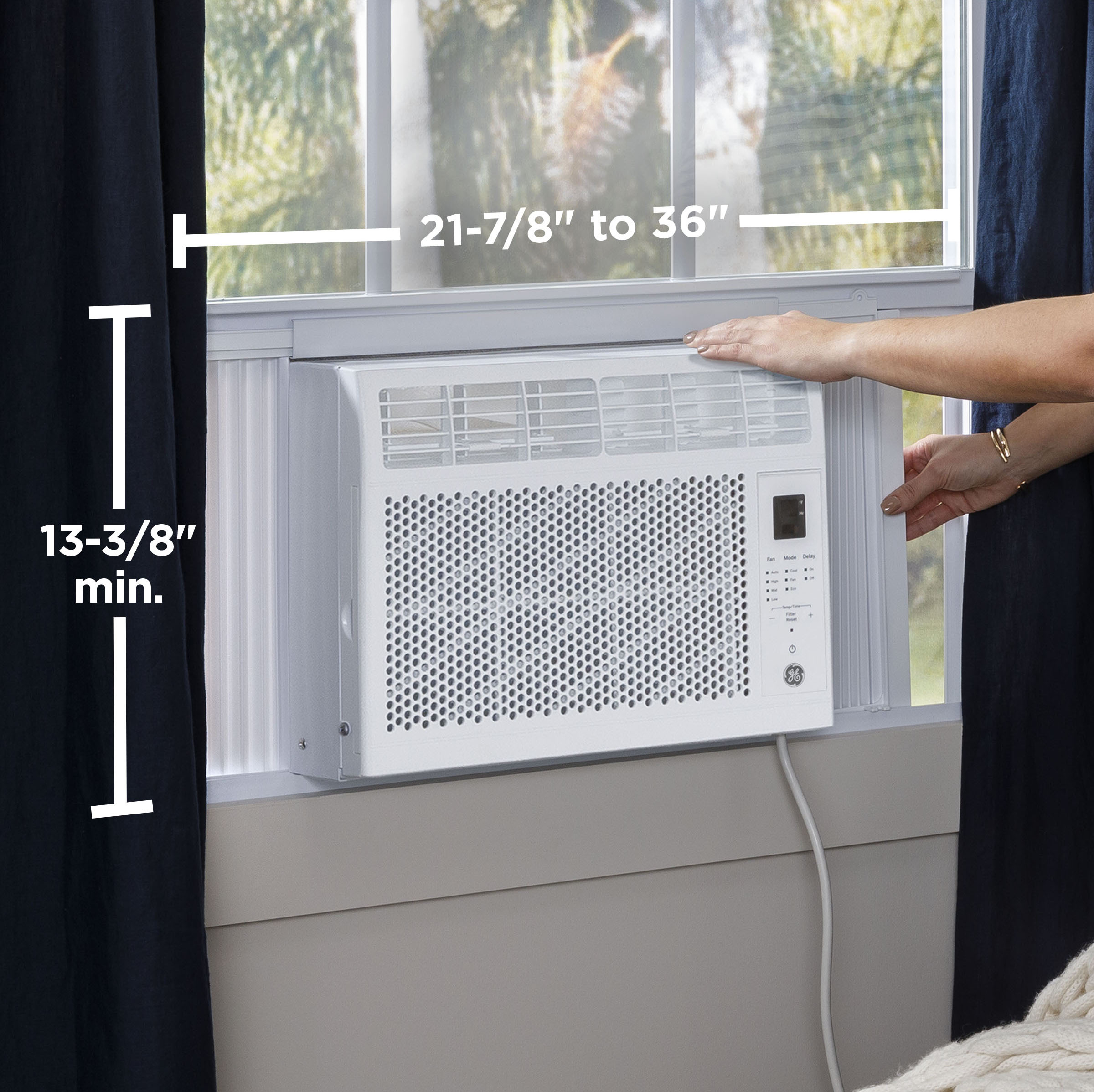

Window air conditioning units: These are compact, self-contained units that are designed to fit into a window frame. They typically consist of a single box that houses the evaporator, condenser, and compressor. Window air conditioning units are easy to install and are a good option for cooling a single room or small space.
