Fire System - Standpipes \ Check Valves Follow

Fire standpipes are an essential component of a building's fire protection system. In a condo building, fire standpipes are vertical pipes that are installed throughout the building to provide a ready source of water for firefighters in the event of a fire.



Fire standpipes consist of a series of interconnected pipes that run from the ground floor of the building to the top floor. The pipes are equipped with a series of valves and connections that allow firefighters to attach hoses and access the water supply.

In a condo building, fire standpipes are typically located in stairwells, hallways, and other common areas. They are designed to be easily accessible and clearly marked, so that firefighters can quickly locate them in the event of an emergency.

Fire standpipes are connected to a reliable water source, such as a municipal water supply or a dedicated fire pump, to ensure that an adequate supply of water is available to extinguish a fire. The water supply is typically connected to the fire standpipes through a fire department connection, which is a special fitting that allows firefighters to connect their hoses directly to the building's water supply.

Fire standpipes are an important part of a condo building's fire protection system. They provide firefighters with a reliable source of water, which can be critical in extinguishing a fire and preventing further damage to the building and its occupants.

In Illinois, the requirements for testing fire standpipes are governed by the Illinois Fire Code, which follows the guidelines established by the National Fire Protection Association (NFPA).

According to NFPA 25, Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems, fire standpipes should be inspected and tested on an annual basis. This inspection should include a visual inspection of the entire system, as well as functional testing of the valves, gauges, and other components.

In addition to the annual inspection and testing, the NFPA 25 Standard also requires a more comprehensive inspection and testing of fire standpipes every five years. This inspection and testing is often referred to as the "five-year flow test" or the "five-year hydrostatic test."

During the five-year flow test, the entire standpipe system is tested under flowing water to determine if it can deliver the required water pressure and volume to the fire hose connections. This test includes flow testing of each standpipe riser, flushing of the entire system to remove any accumulated debris or sediment, and inspection of the valves and other components for proper operation.

The five-year hydrostatic test involves pressurizing the standpipe system to a specified pressure for a set amount of time to ensure that the pipes and fittings are able to withstand the maximum working pressure of the system without leaking or rupturing.

The specific requirements for the five-year inspection and testing of fire standpipes may vary depending on the local jurisdiction and the specific building code in effect in a particular location.

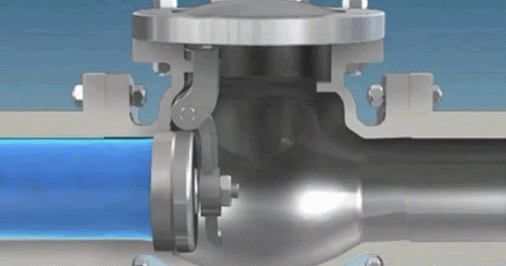

A check valve is a device used in a sprinkler system to prevent water from flowing back through the pipes in the opposite direction. It is typically installed at the base of the riser or mainline and prevents water from flowing back into the system when the water pressure drops or the pump turns off.



Check valves work by using a spring-loaded disc or piston that allows water to flow in one direction but closes when the water tries to flow in the opposite direction. This ensures that water can only flow out through the sprinkler heads and not back into the system, which could cause damage to the pipes and affect the efficiency of the system.

In a sprinkler system, check valves are essential to maintaining water pressure and ensuring that the system works properly. They are often required by building codes and regulations to prevent contamination of the water supply and protect against backflow.

Before the standpipe is tested, ensure you put the system on test. (See Putting a System on Test).
